Gaussian Mixture Models (GMM): Smarter Clustering with a Probabilistic Edge

Introduction

Real-world data is often messy, overlapping, and far from clearly separated. That’s why traditional clustering methods like K-Means can struggle to deliver accurate results. Gaussian Mixture Models (GMM) offer a smarter, more flexible solution.

Instead of assigning each data point to just one cluster, GMM uses probabilities to describe how likely a point belongs to multiple clusters at once. This technique—known as soft clustering—makes Gaussian Mixture Models (GMM) especially useful when data clusters aren’t neatly divided.

Each cluster in a GMM is represented by a Gaussian distribution with its own mean, variance, and weight. The model estimates these parameters using an algorithm called Expectation-Maximization (EM), gradually improving its accuracy with each iteration.

Whether you’re analyzing customer behavior, segmenting images, or detecting patterns in financial data, Gaussian Mixture Models (GMM) provide a powerful way to model complex data distributions. In this guide, we’ll explore how GMMs work, why they matter, and how to implement them in Python with real-world examples.

What is a Gaussian Mixture Model (GMM)?

A Gaussian Mixture Model (GMM) is built on the idea that your data is not coming from just one group or cluster, but from a combination of several. Each group is modeled by its own Gaussian distribution—commonly known as a normal distribution (the classic bell-shaped curve). Each of these distributions represents one component (or cluster) of the model.

Instead of assigning each data point to a single group like K-Means, GMM combines multiple Gaussian curves and determines how likely each point belongs to each group. Let’s break down the key elements that make this possible:

1. Mean (( mu )) – The Center of the Cluster

Every Gaussian distribution in a Gaussian Mixture Model has its own mean, represented by ( mu ). This is the center of the cluster—the point around which most of the data in that cluster is concentrated.

In 1D, the mean is a single value.

In 2D or higher dimensions, the mean becomes a vector that points to the center of the cluster in that space.

Think of ( mu ) as the “location” of the cluster.

2. Covariance Matrix (( Sigma )) – The Shape and Spread of the Cluster

The covariance matrix, represented by ( Sigma ), describes the shape, spread, and orientation of the Gaussian curve in the data space.

If ( Sigma ) is small, the data is tightly packed around the mean.

If ( Sigma ) is large, the cluster is more spread out.

If ( Sigma ) is diagonal, the cluster spreads equally along all axes.

If ( Sigma ) has off-diagonal terms, it shows correlation between features, allowing for elliptical shapes rather than just circular ones.

Think of ( Sigma ) as defining the “width and direction” of the cluster.

3. Mixing Coefficient (( pi )) – The Weight of the Cluster

The mixing coefficient, represented by ( pi ), defines how much each Gaussian component contributes to the overall model. It reflects the relative size or importance of each cluster in the dataset.

A higher ( pi ) value means the cluster represents a larger portion of the data.

All mixing coefficients must satisfy the constraint:

[
sum_{k=1}^{K} pi_k = 1
]

This ensures that the total probability across all clusters equals 1.

Think of ( pi ) as the “weight” or “influence” of a cluster in the mixture model.

How These Components Work Together

In a Gaussian Mixture Model, each cluster is defined by a unique combination of three parameters:

( mu ) – the mean: where the cluster is centered
( Sigma ) – the covariance matrix: how the cluster is shaped and spread
( pi ) – the mixing coefficient: how much the cluster contributes to the entire dataset

Together, these parameters allow each Gaussian component to model a portion of the data distribution. The model uses a weighted sum of all such components to represent the complete dataset.

This combination enables GMMs to capture overlapping, elliptical, and unbalanced clusters far better than traditional methods like K-Means.

Understanding the Expectation-Maximization (EM) Algorithm in GMM

Gaussian Mixture Models (GMMs) don’t assign each point to a single cluster. Instead, they ask: “What’s the likelihood that this point came from each cluster?” This approach, called soft clustering, is what gives GMMs their power and flexibility.

To make this work, GMMs need to learn both the number of clusters and how each one behaves. However, the tricky part is that we don’t know which cluster generated each data point.

That’s where the Expectation-Maximization (EM) algorithm comes in—it’s a two-step loop that helps Gaussian Mixture Models (GMMs) learn from incomplete data.

What Is the EM Algorithm?

The EM algorithm is an iterative optimization technique for models that depend on hidden variables—values that are not directly observable. In the case of GMMs, the hidden variable is the cluster label for each data point.

We don’t know these labels, so EM does the next best thing: it estimates them and refines those estimates over time.

In each loop of the algorithm:

The E-step estimates the probability of each point belonging to each cluster.
The M-step uses those probabilities to update the cluster parameters.
This process repeats until the parameters stabilize and the model fits the data well.

EM is a perfect match for GMM because it can handle uncertainty and improve over time.

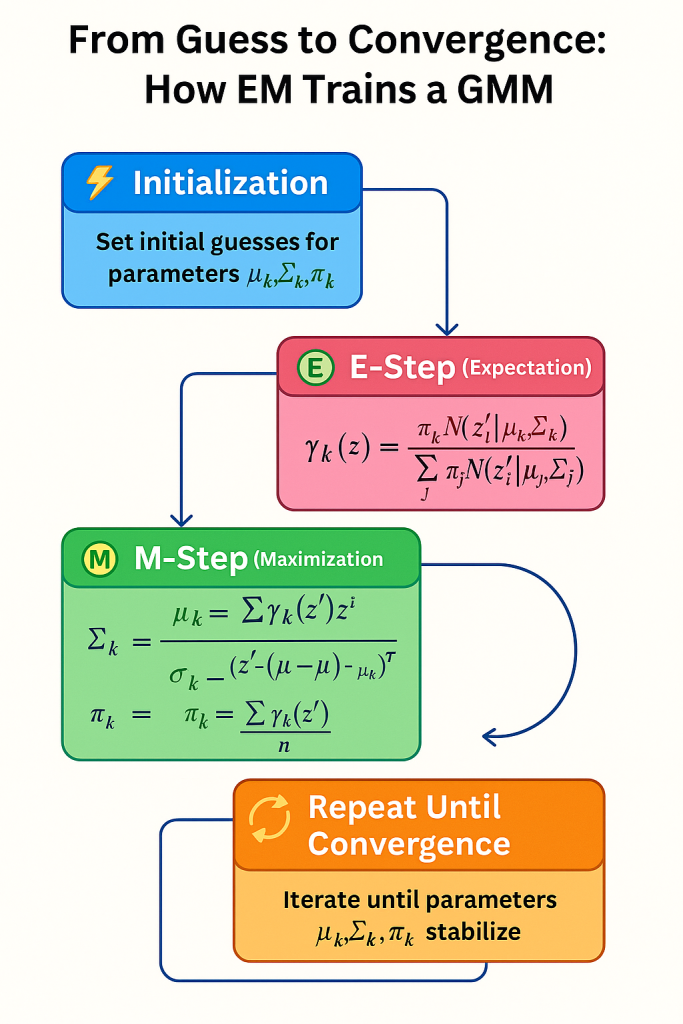

🔁 How EM Works in a GMM

1. Initialization

Before the EM algorithm starts, we need to set initial guesses for each parameter:

( mu_k ): the average location of points in cluster ( k )
( Sigma_k ): how wide or directional the spread is for cluster ( k )
( pi_k ): how much of the dataset is expected to belong to cluster ( k )

These can be initialized randomly, or we can run K-Means first to get reasonable starting points.
Good initialization helps EM converge faster and avoid poor local optima.

2. E-Step (Expectation Step)

In this step, we use the current parameters to compute how likely it is that each point came from each Gaussian.

Mathematically, for each point ( x_n ), we compute the responsibility ( gamma_{nk} ):

[
gamma_{nk} = frac{pi_k cdot mathcal{N}(x_n mid mu_k, Sigma_k)}{sum_{j=1}^{K} pi_j cdot mathcal{N}(x_n mid mu_j, Sigma_j)}
]

Here:

( gamma_{nk} in [0, 1] ) and ( sum_k gamma_{nk} = 1 )
It represents the fraction of responsibility that component ( k ) has for generating point ( x_n )

This soft assignment allows each point to partially belong to multiple clusters—unlike hard clustering.

3. M-Step (Maximization Step)

Once we’ve estimated the responsibilities, we now update the parameters of each Gaussian component based on these probabilities.
The more responsibility a component has for a data point, the more it contributes to the new parameter values.

We update the parameters as follows:

Mean:

[
mu_k = frac{1}{N_k} sum_{n=1}^{N} gamma_{nk} cdot x_n
]

Covariance:

[
Sigma_k = frac{1}{N_k} sum_{n=1}^{N} gamma_{nk} cdot (x_n – mu_k)(x_n – mu_k)^T
]

Mixing Coefficient:

[
pi_k = frac{N_k}{N}, quad text{where } N_k = sum_{n=1}^{N} gamma_{nk}
]

These new estimates better reflect the distribution of data, and the algorithm will now re-enter the E-step using these updated values.

4. Repeat Until Convergence

The EM algorithm now alternates between the E-step and M-step repeatedly.
With each cycle, the estimates for parameters ( mu_k ), ( Sigma_k ), and ( pi_k ) get better.

We monitor the log-likelihood of the data given the model:

[
log P(X mid mu, Sigma, pi) = sum_{n=1}^{N} log left( sum_{k=1}^{K} pi_k cdot mathcal{N}(x_n mid mu_k, Sigma_k) right)
]

The algorithm stops when the improvement in log-likelihood between iterations is smaller than a threshold.
This means the model has converged and further updates won’t significantly change the parameters.

EM Algorithm Summary Table

Step	Description
Initialization	Make initial guesses for μₖ, Σₖ, πₖ
E-Step	Calculate soft assignments (responsibilities) for each point
M-Step	Update parameters based on these assignments
Repeat	Iterate until the model stops improving (convergence)

GMM Clustering in Python (with Real-World Dataset)

We’ll now apply GMM to a real dataset—the Iris dataset from scikit-learn. We’ll standardize the data and fit a GMM to identify clusters based on the shape of the data distribution.


					from sklearn.datasets import load_iris
from sklearn.mixture import GaussianMixture
from sklearn.preprocessing import StandardScaler
import matplotlib.pyplot as plt
# Load the dataset
iris = load_iris()
X = iris.data
# Standardize the data
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)
# Fit the Gaussian Mixture Model
gmm = GaussianMixture(n_components=3, random_state=42)
labels = gmm.fit_predict(X_scaled)
# Visualize clusters (2D)
plt.figure(figsize=(6, 4))
plt.scatter(X_scaled[:, 0], X_scaled[:, 1], c=labels, cmap='viridis', s=30)
plt.title("GMM Clustering (Iris Dataset)", fontsize=10)
plt.xlabel("Feature 1 (standardized)", fontsize=9)
plt.ylabel("Feature 2 (standardized)", fontsize=9)
plt.xticks(fontsize=8)
plt.yticks(fontsize=8)
plt.tight_layout()
plt.grid(True)
plt.show()

10. GMM vs K-Means: A Clear Comparison

Goal: Help readers understand when to use Gaussian Mixture Models (GMM) instead of simpler methods like K-Means clustering.

Feature	K-Means Clustering	Gaussian Mixture Models (GMM)
Assignment	Hard (one cluster only)	Soft (probabilistic, multiple memberships)
Cluster Shape	Spherical	Elliptical or flexible
Uses Probabilities	❌ No	✅ Yes
Handles Overlap	Poorly	Very well

Key Takeaway:
Use Gaussian Mixture Models (GMM) when your data has overlapping clusters or non-spherical distributions. GMM provides a more flexible and probabilistic approach to clustering than K-Means, especially for real-world, messy datasets.

Interpreting the Output

Each data point is visually colored based on the cluster to which it most likely belongs, as determined by the highest posterior probability.
Unlike K-Means, which draws rigid, spherical cluster boundaries, GMM captures more flexible, elliptical cluster shapes, better reflecting the true distribution of the data.
Data points near the boundaries of clusters are assigned based on probability rather than hard distance thresholds, allowing for smoother transitions between clusters.
For advanced use cases, you can retrieve the full set of cluster membership probabilities using gmm.predict_proba(), enabling soft classification where points may partially belong to multiple clusters.

Advantages of Gaussian Mixture Models (GMM)

Soft Clustering for Complex, Overlapping Data

One of the biggest strengths of Gaussian Mixture Models (GMM) is their ability to perform soft clustering. Instead of assigning a data point to just one cluster—as in K-Means—GMM assigns a probability to each point for belonging to every cluster. This is particularly useful when clusters overlap or when the decision boundaries are not clear-cut.

Captures Elliptical and Uneven Cluster Shapes

Unlike K-Means, which assumes clusters are spherical and equal in size, GMM can adapt to more realistic shapes. By using covariance matrices, Gaussian Mixture Models can represent elongated, skewed, or rotated clusters—making them ideal for real-world datasets where cluster geometry isn’t uniform.

Estimates the Full Probability Distribution

Rather than just grouping data, Gaussian Mixture Models (GMM) aim to model the underlying probability distribution. This makes them valuable not only for clustering but also for density estimation, generative modeling, and probabilistic reasoning.

Enables Probability-Based Decision Making

GMM doesn’t just label a point—it provides the likelihood that the point belongs to each cluster. This probabilistic output is essential for applications requiring uncertainty quantification or fine-grained decision-making.

Works Well in High-Dimensional, Continuous Data

Gaussian Mixture Models are highly effective when working with continuous-valued features and higher-dimensional data, especially when coupled with techniques like dimensionality reduction or regularization to maintain numerical stability.

Supports Semi-Supervised Learning Scenarios

Thanks to their probabilistic foundation, GMMs are well-suited for semi-supervised learning, where only part of the data is labeled. The model can infer the remaining structure from the unlabeled portion.

Integration with Popular ML Frameworks

Gaussian Mixture Models (GMM) are readily available in widely-used machine learning libraries such as Scikit-learn, TensorFlow Probability, PyTorch, and MATLAB, making them easy to deploy in production-grade pipelines.

Limitations of Gaussian Mixture Models (GMM)

Assumes Gaussian-Shaped Clusters

A key limitation is that GMM assumes each cluster follows a Gaussian (normal) distribution. If your data deviates significantly from this assumption, the clustering performance may suffer.

Sensitive to Initial Parameters

Since GMM relies on the EM algorithm, bad initialization can trap it in local minima. This is why initialization with K-Means or running multiple times is often recommended for better outcomes.

Determining the Number of Clusters is Tricky

Choosing the optimal number of components for a Gaussian Mixture Model is non-trivial. Metrics like AIC or BIC are often needed for model selection, which adds an extra layer of complexity.

More Computationally Demanding than K-Means

GMM’s iterative EM process—especially the computation of responsibilities and covariance matrices—can be more resource-intensive compared to K-Means, particularly on large or high-dimensional datasets.

Risk of Overfitting

When too many Gaussian components are used, GMM may overfit, especially on small or noisy datasets. Using simpler covariance structures or regularization can help mitigate this issue.

Less Effective for Arbitrarily-Shaped Clusters

While GMM is excellent for elliptical clusters, it may not handle irregularly-shaped or nested clusters well. Algorithms like DBSCAN or spectral clustering are better suited in such scenarios.

Common Applications of Gaussian Mixture Models (GMM)

Voice & Speaker Recognition
GMM is widely used in speech processing to model voice characteristics and detect speaker changes or segments in audio recordings.
Image Segmentation
Gaussian Mixture Models are applied to separate image regions based on pixel intensity or color values—ideal for tasks in computer vision and medical imaging.
Financial Risk Modeling
In finance, GMM helps model return distributions, volatility clusters, and asset behaviors, providing a probabilistic basis for decision-making.
Customer Segmentation
Businesses use GMM to identify different consumer groups based on purchasing behavior, engagement patterns, and demographics.
Anomaly & Fraud Detection
By modeling the normal data distribution, GMM can flag outliers—points that have a very low probability of belonging to any cluster.
Medical Imaging
GMM helps segment brain regions like white matter and gray matter from MRI or CT images by modeling voxel intensities statistically.
Natural Language Processing
GMM can be used for word clustering, topic modeling, or word sense disambiguation when combined with embeddings or PCA.

Conclusion

Gaussian Mixture Models (GMM) provide a powerful and flexible way to cluster data, especially when clusters are overlapping or not perfectly separated. Unlike hard clustering methods like K-Means, GMM uses soft assignments, making it ideal for capturing uncertainty in real-world data.

From customer segmentation to anomaly detection, GMM has wide applications across industries. Try using Gaussian Mixture Models (GMM) on your own datasets to uncover deeper insights.

To go further, consider exploring advanced methods like Variational GMMs or Bayesian GMMs for even more robust probabilistic modeling.

Frequently Asked Questions (FAQs)

What are Gaussian Mixture Models (GMM)?
Gaussian Mixture Models (GMM) are probabilistic models that represent a dataset as a combination of multiple Gaussian distributions, each describing a potential cluster in the data.
How do Gaussian Mixture Models (GMM) differ from K-Means clustering?
Unlike K-Means, which assigns each point to a single cluster, GMM uses probabilities to reflect how likely a point belongs to each cluster—allowing for soft clustering.
When should I use Gaussian Mixture Models (GMM)?
GMM is ideal when your data has overlapping clusters, varying shapes, or when you need a more flexible alternative to hard clustering methods like K-Means.
Do Gaussian Mixture Models (GMM) require labeled data?
No, GMM is an unsupervised learning algorithm and does not need labeled data to identify patterns or groupings.
What is the role of the Expectation-Maximization (EM) algorithm in GMM?
The EM algorithm is used to iteratively estimate which cluster each point most likely belongs to and to update the model parameters until convergence.
Can Gaussian Mixture Models (GMM) be used for anomaly detection?
Yes. GMM can identify anomalies by flagging data points with very low probability under the learned mixture model.
How do I choose the right number of clusters in GMM?
You can use metrics like the Bayesian Information Criterion (BIC) or Akaike Information Criterion (AIC) to determine the optimal number of components.
Is GMM sensitive to how it’s initialized?
Yes. The initial values for the means and covariances can affect the final outcome, so good initialization strategies like K-Means are often used.
Can Gaussian Mixture Models (GMM) handle high-dimensional data?
GMM can be applied to high-dimensional datasets, but it’s often helpful to reduce dimensions first using methods like PCA to improve performance and stability.
Are there more advanced versions of GMM?
Yes. Variational GMMs and Bayesian GMMs extend the basic model to better handle uncertainty and prevent overfitting, especially with limited data.
